Wireline Entry Guide Wireline Tool String

Name: Wireline Entry Guide Wireline Tool String
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.25inch~4inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T

Supply Ability : 1 set 2 weeks

Delivery Time : 1-2 weeks

Packaging Details : Wooden Box

Name : Wireline Entry Guide Wireline Tool String

Material : Alloy Steel&Nickel Alloy

Size : 1.25inch~4inch

Fish Neck : 1.187inch,1.375inch 1.75inch 2.313inch,3.125inch

Connection : SR,QLS,BLQJ,HDQRJ

Applicable Tubing : Wireline &Slickline

Function : To guide the tool string to enter into small drift diameter from large drift diameter

Contact Now

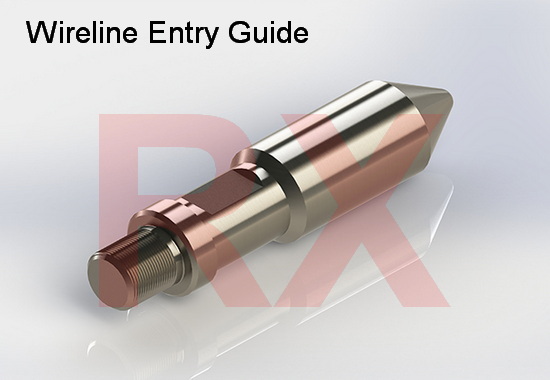

Wireline Entry Guide Wireline Tool String

Ⅰ.Introduction
Wireline Entry Guide is a type of contactor to guide the tool string to enter into small drift diameter
from large drift diameter in the entering process, which usually is connected with the lowest end of tool string.
Ⅱ.Parameter:

Size	FN	Connection
1.25＂	1.187＂	15/16UN
2＂	1.375＂	15/16UN
3＂	1.75＂	1-1/16-10UN
4＂	2.313＂	1-9/16-10UN

III. Structural features
1. The top of the guide is external thread (or quick male joint) and fishing neck and the bottom is a guiding
cone.
2. The guide can guide the tool string to enter into small drift diameter from a major-diameter pipe in the
entering process to guarantee the tool can enter into the well smoothly.
3.Some guides have outer overflowing grooves to guarantee the overflowing in the entering process.

Welcome to contact us at any time.
