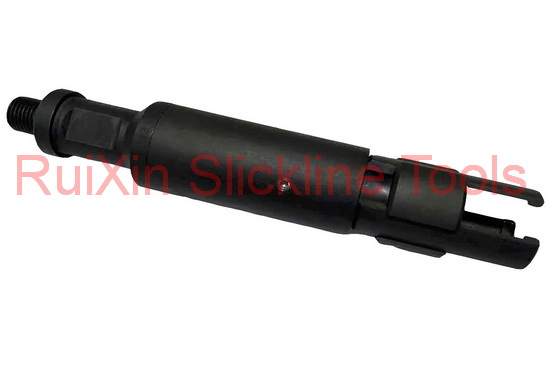

2 Inch B Type Pulling Tools Wireline Pulling Tool

Brand Name : Ruixin

Model Number : 1.25inch,1.5inch 2inch 2.5inch.3inch,4inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 3 weeks

Delivery Time : 3-4 weeks

Packaging Details : Wooden Box

Name : 2 Inch B Type Pulling Tools Wireline Pulling Tool

Size : 1inch—3inch

Material : Material aluminum alloy

Fish Neck : 0.75inch,1.187inch 1.375inch 1.75inch 2.313inch

Connection : 5/8UN 15/16UN 1-1/16UN

Function : To retrieve subsurface devices with different fishing neck reach.

Contact Now

2 Inch B Type Pulling Tools Wireline Pulling Tool
I. Overview:
B-type fishing tools are divided into two types, "BB" and "BE". The BB type has short jaws, so the grab distance is short; the BE type has long jaws, so the grab distance is long. These two types are exactly the same except for the length of the claws, and can be interchanged by changing the claws.
II. Technical parameters and specifications:

Size A D Fishing Connection Grip Grab diameter
1＂ 0.875＂ 0.75＂ 5/8UN 1.44″ 0.75＂
1.5＂ 1.38＂ 1.187＂ 15/16UN 1.44″ 1.187＂
2＂ 1.75＂ 1.375＂ 15/16UN 1.44″ 1.375＂
2.5＂ 2.25＂ 1.75＂ 15/16UN 1.44″ 1.75＂
3＂ 2.81＂ 2.313＂ 1-1/16UN 1.44″ 2.313＂

III. Structural features and use:
B-type fishing tool is the shear pin is shaken upwards, the upper joint and the outer cylinder are pulled upwards, and the claws are opened under the action of the spring, and the hands are released.
IV, matters needing attention:
1. When assembling, check whether each piece is damaged and replace it in time.
2. When using, carefully check whether the parts are connected well.
3. When not in use temporarily, apply lubricating oil to the thread and place it with a protective wire.

Welcome to contact us at any time.
